YAMAHA LCMR200模組化滑塊
可自由組裝設立生產線,另有水平或垂直搬運台可縮短生產線,提高空間運用
基本規格
滑塊間機械誤差 | ± 30μm |
---|---|
重複精度 | ± 5μm |
最大搬運重量 | 30 kg |
最高速度 | 2500mm/sec ( 搬運重量10kg以上時,依據重量降低至2000mm/sec ) |
最大加速度 | 1.3 G (可搬運1kg時) |
滑塊大小 | 200、300、500、1000mm |
滑塊間距離限制 | 最小210mm |
使用溫度 | 0 ~ 40 °C |

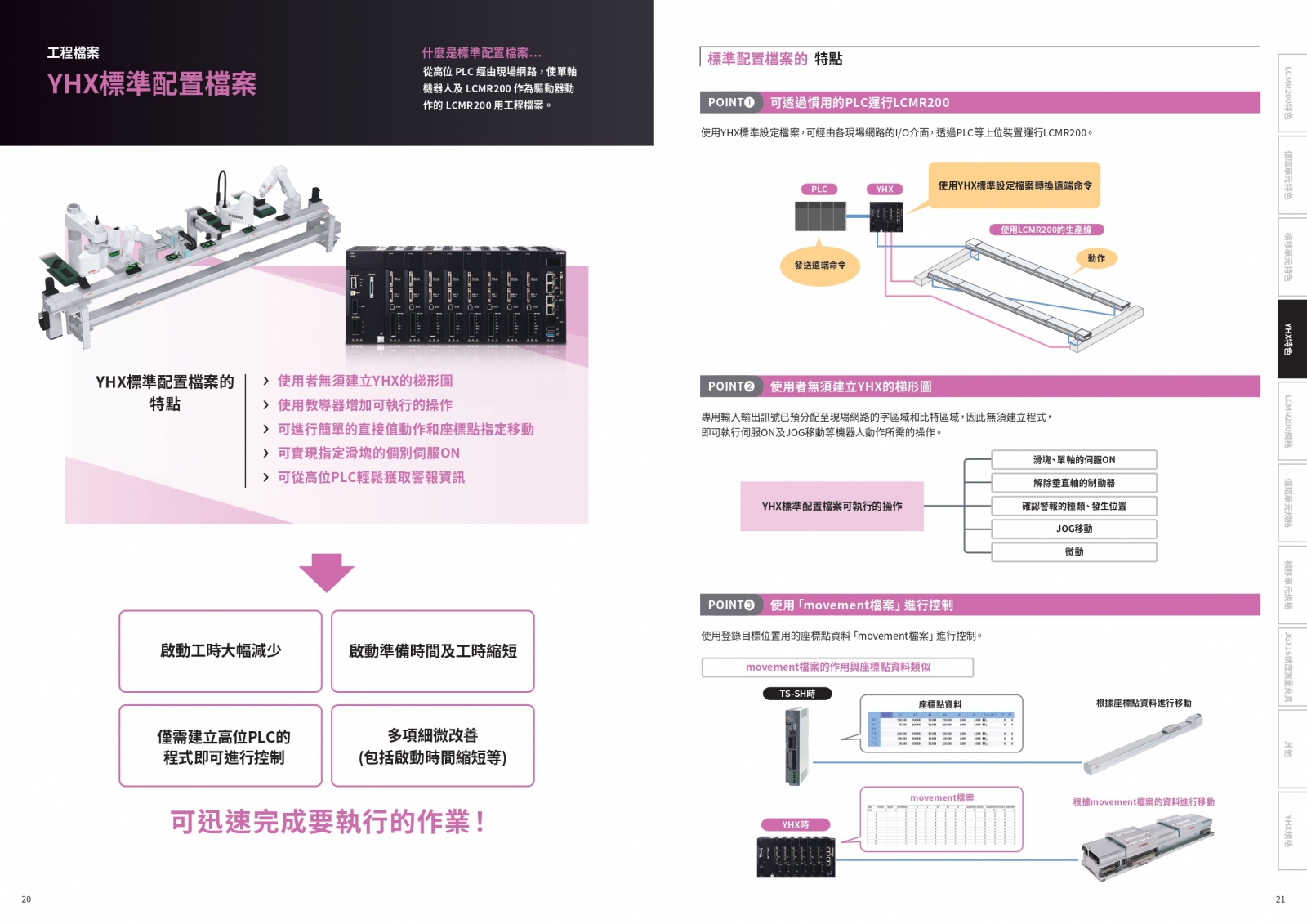

控制方式 | PLC發送遠程命令給YAMAHA YHX 控制器來執行控制 |
商品介紹
![](http://yamazen.tw/data/editor/images/LCMR200001.jpg)
![](http://yamazen.tw/data/editor/images/LCMR200002.jpg)
![](http://yamazen.tw/data/editor/images/LCMR200003.jpg)

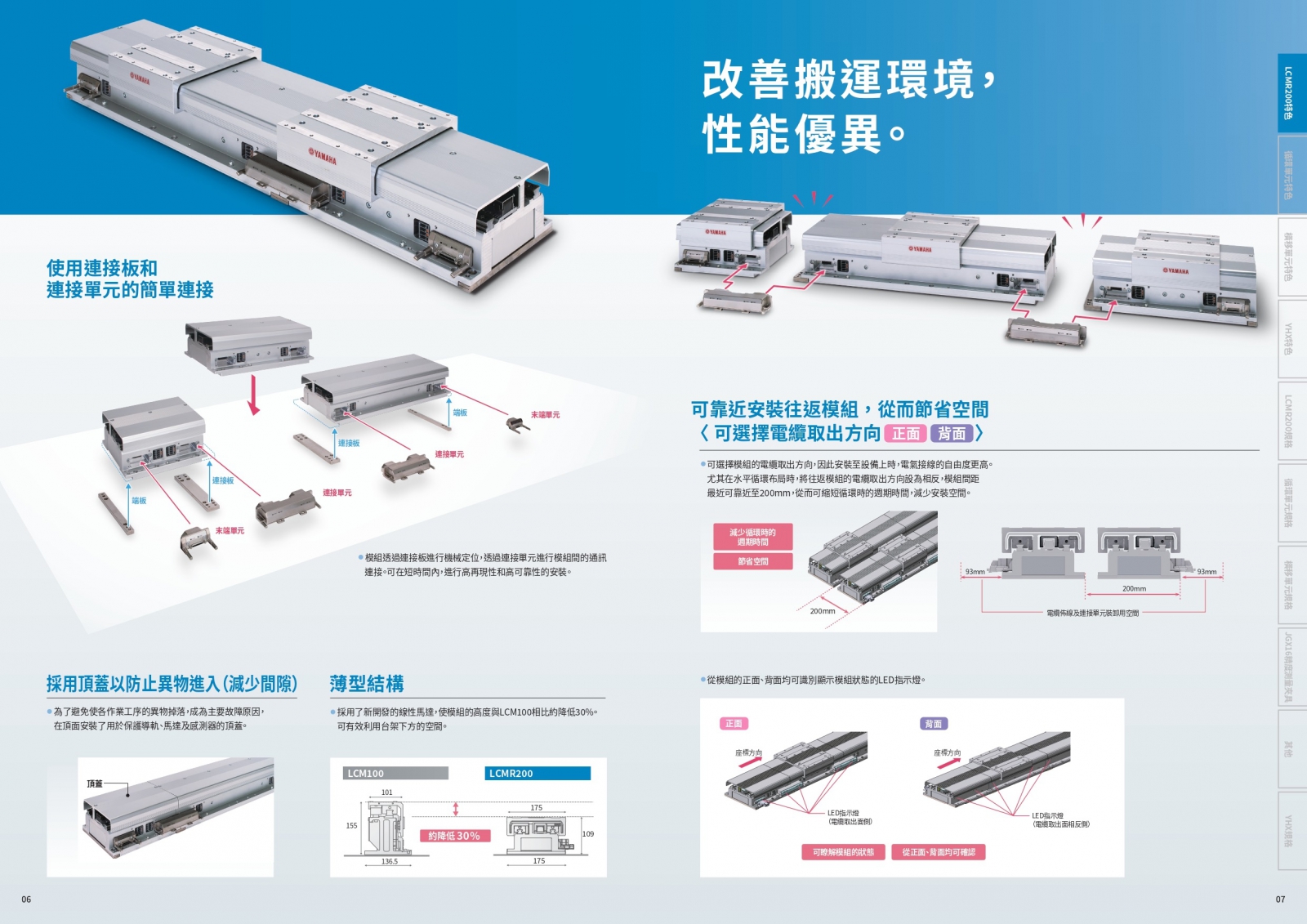

![](http://yamazen.tw/data/editor/images/LCMR200_004.jpg)

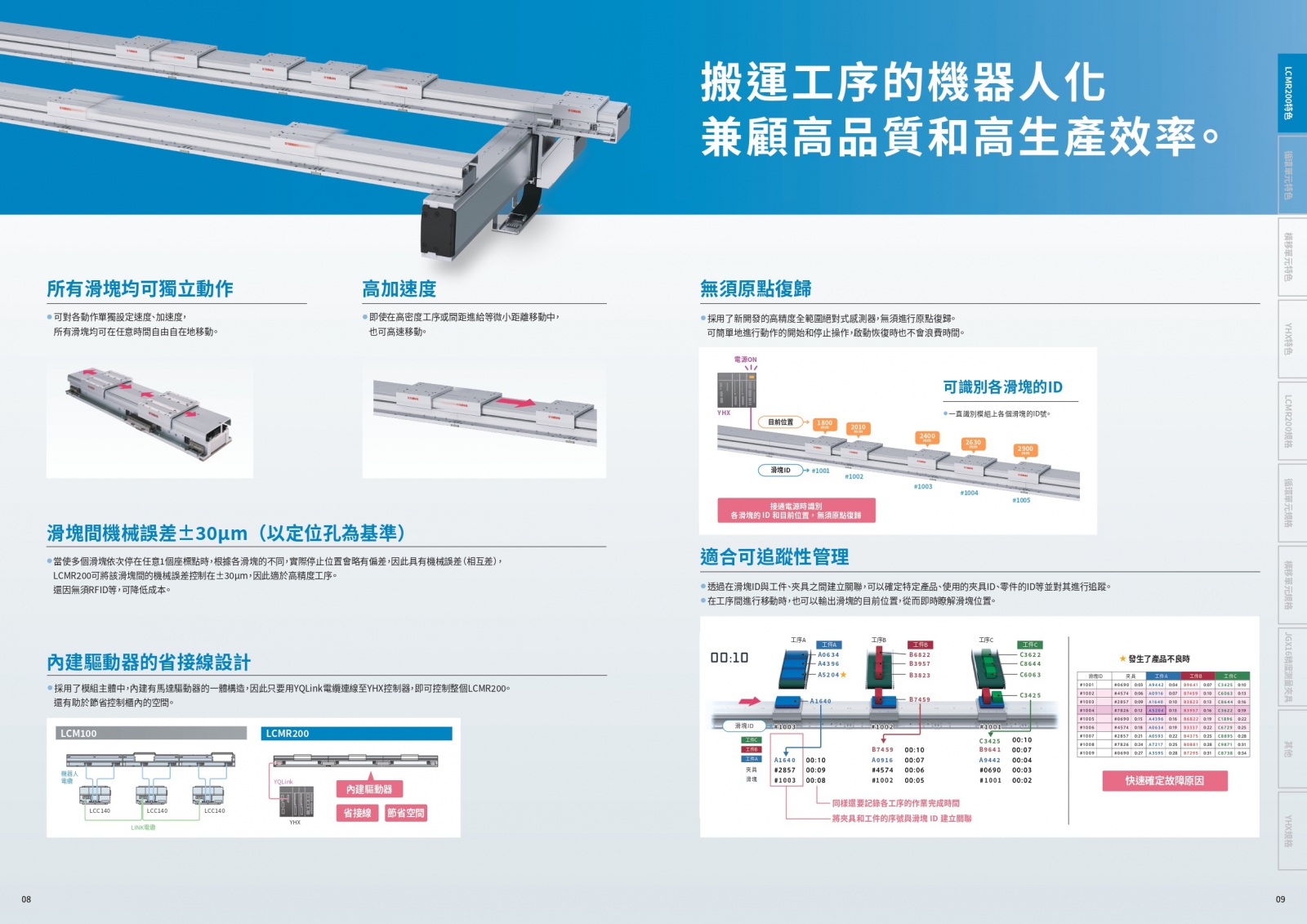

![](http://yamazen.tw/data/editor/images/LCMR200_005.jpg)

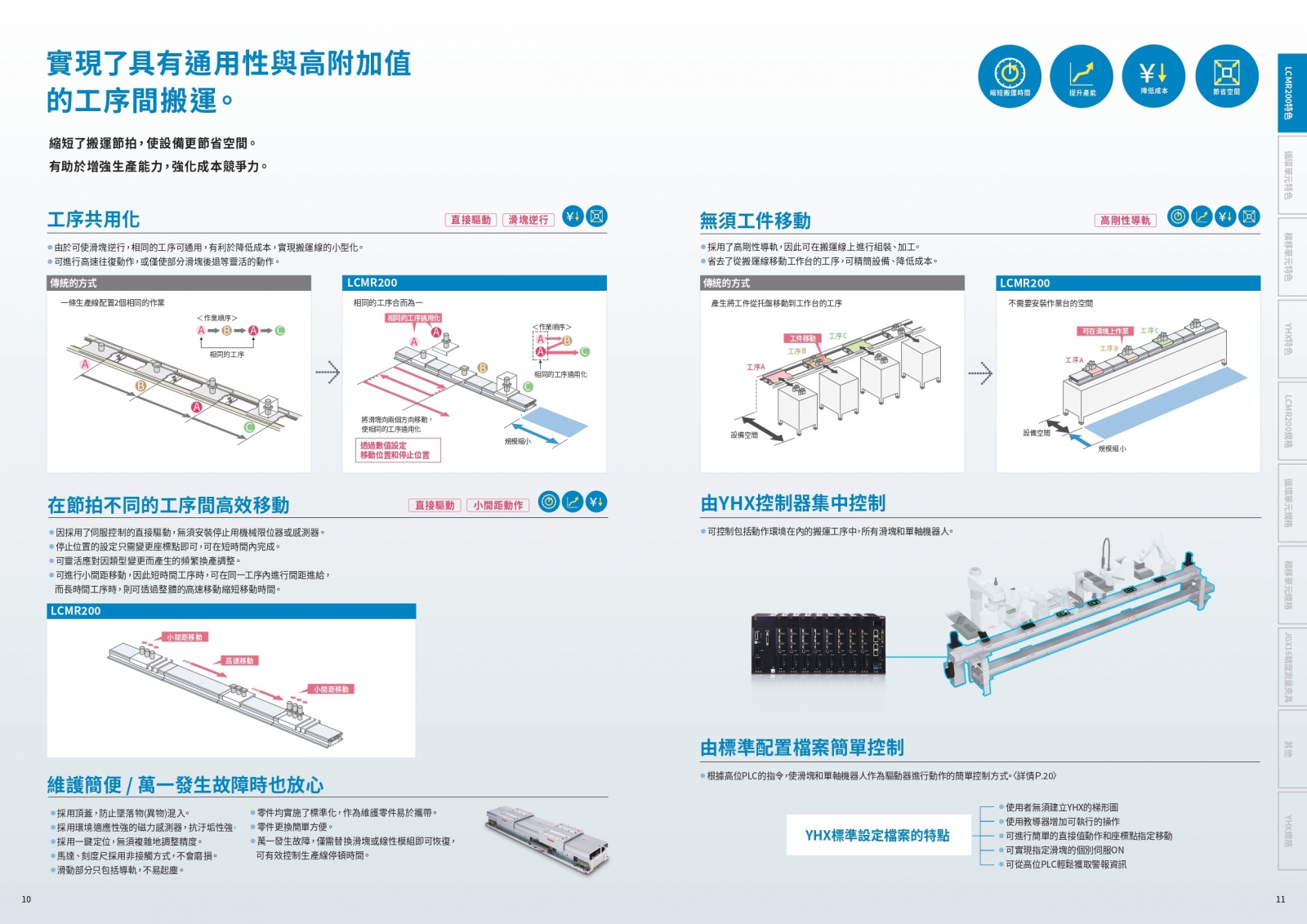

![](http://yamazen.tw/data/editor/images/LCMR200_006.jpg)

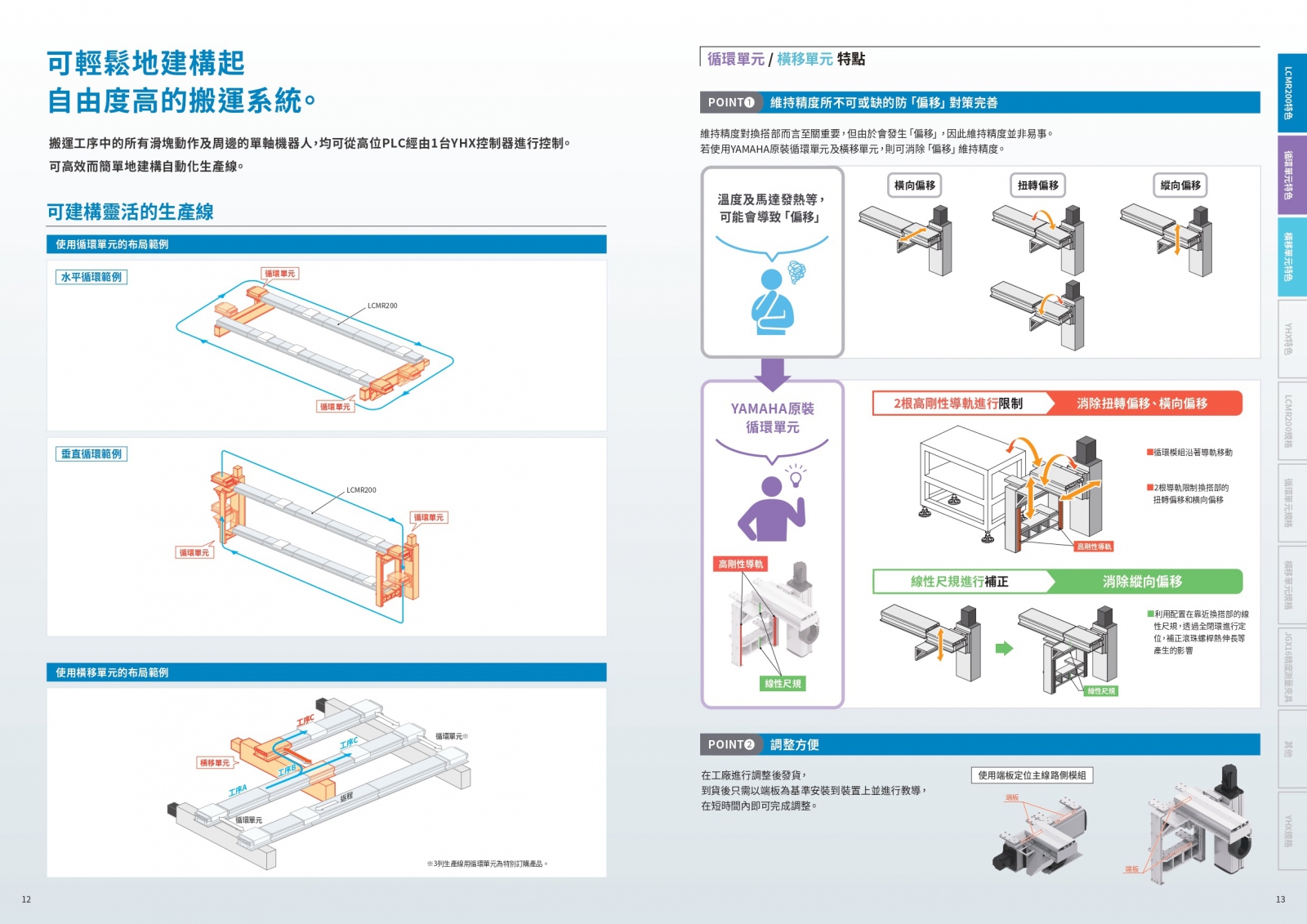

![](http://yamazen.tw/data/editor/images/LCMR200_007.jpg)

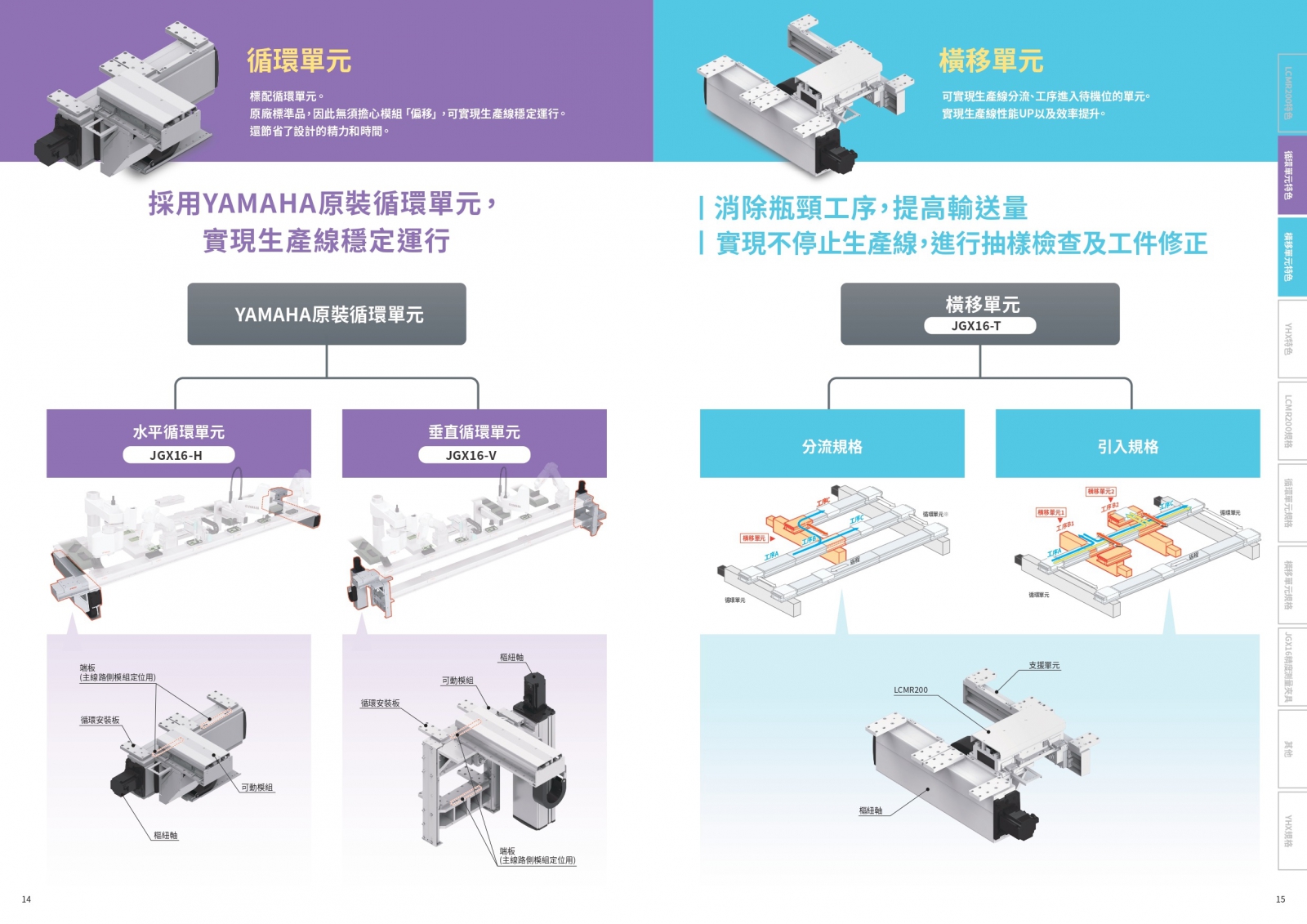

![](http://yamazen.tw/data/editor/images/LCMR200_008.jpg)

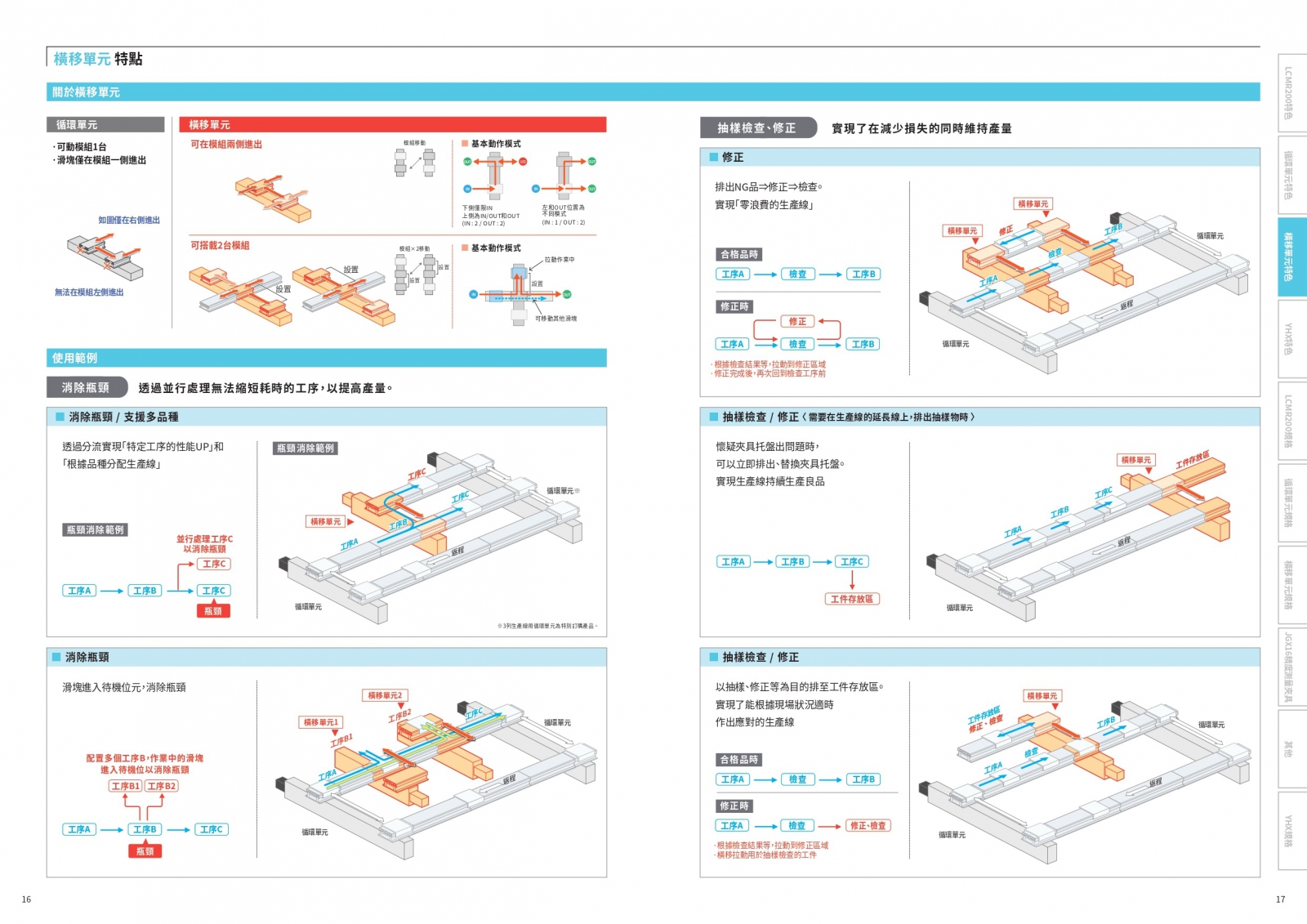

![](http://yamazen.tw/data/editor/images/LCMR200_009.jpg)

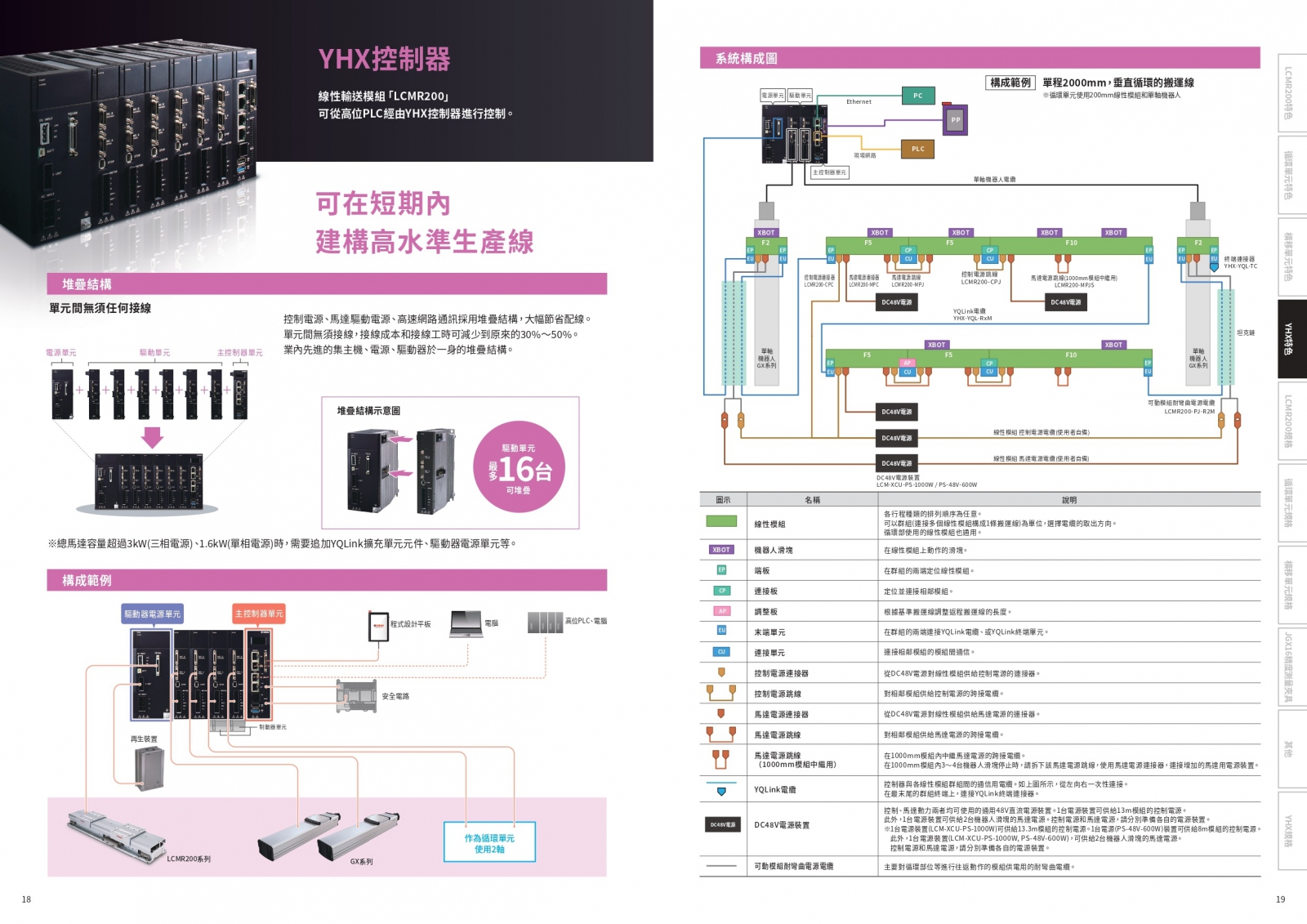

![](http://yamazen.tw/data/editor/images/LCMR200_010.jpg)
![](http://yamazen.tw/data/editor/images/LCMR200_011.jpg)
